Application field:
The machine is designed for pure cotton towels and all requirements under normal  temperature dyeing cloth designed, especially big nozzle, high-performance stainless steel centrifugal pump, combined with advanced dyeing liquid circulation system, to ensure good dyeing effect, self-cleaning filtration system, Greatly improve the work efficiency. Low bath ratio for dyeing, reduce water consumption and energy saving. Advanced program controller can improve the efficiency of dyeing and dyeing reproducibility.

Technical features
1. All the fuselage and dyeing liquid contact  plate adopt brand for SUS16TI/SUS316L highly corrosion resistant stainless steel manufacturing.
2. Highly efficient stainless steel centrifugal pump
3. The main pump frequency conversion controller

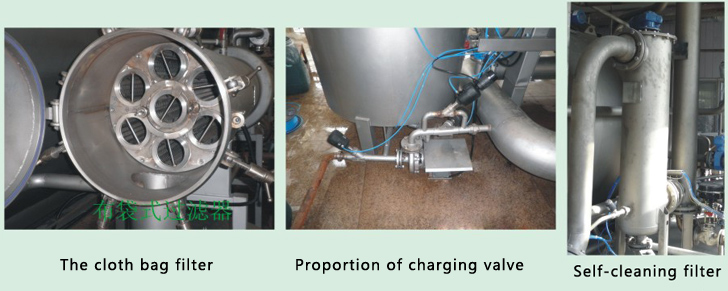

4. Since the clean filtering system
5. Frequency conversion control hoisting drum
6. Extra large towels special nozzle
7. Fabric cloth groove roll fold device
8. High efficient heat exchanger with smart cooling control system
9. Equipped with a digital sensor level indicator
10. Programmable automatic quantitative loading and chemical fertilizer system
11. Built-in Circulating spray  cleaning device
12. With DTR shows dyeing computer controlled electric box in both English and Chinese
13. What cloth roller bag shoe anti-slip matte surface glue
14. Stainless steel working platform with antiskid rubber sheet
15. Socks bag filter (optional)

 >
