SJ320 open width airflow soft drying machine
Addtime£º 2013-6-13      From£ºDuowei Pump



Field of application:
1. Make the fabric achieve soft handle and efficiect shrinkage made from different ingredient, such as cotton, linen, viscose blende fabric including stretch fabric.
2. Improves the elasticity and relaxation of decorative cloth for motor vehicle. It could meet the requirements of automotive interior fabric.
3. Improves decorative cloth surface especially chenille fabrics.
4. Improves the softness of weaving fabric and knitting towel, improve the coil features of towel.

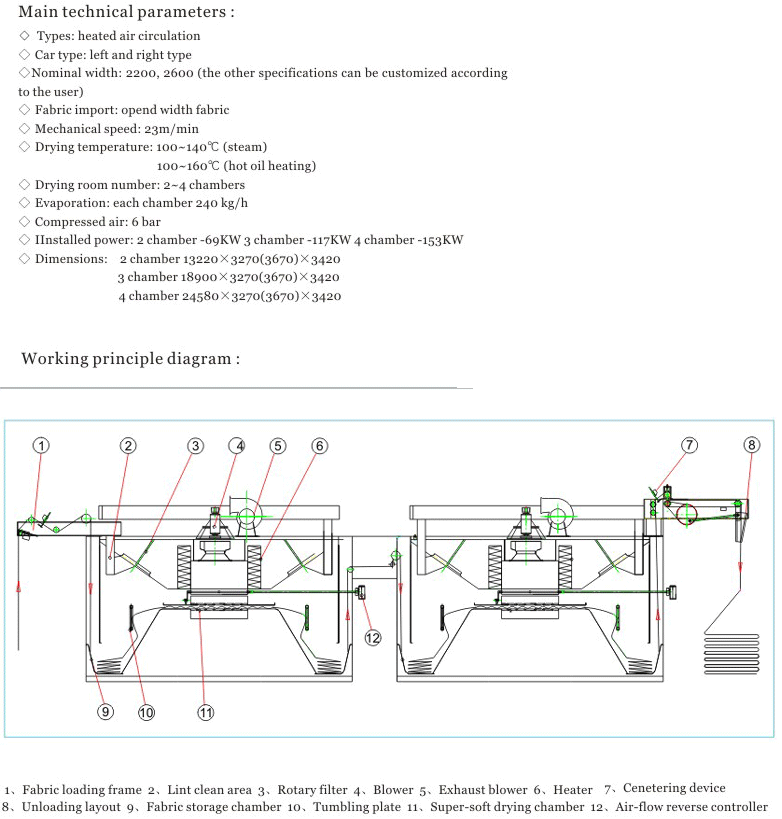

The technical features:
Shock type dryer which completely redesigned provide the perfect finishing effect and achieve the desired quality requirements.
1. The drying chambers are specially designed for interchangeable forwarding of fabric, the fabric was tumbled and transmitted by hot air forwarding and reversing. Both side of fabric are fully treated so that super-soft hand feel and best shrinkage result are achieved.
2. The fabric storage chamber keeps forward-reverse of fabric continuously. Capacity and stored time are adjustable to keep sufficient tumbling for even high efficiency production.
3. Cloth storage time and drying temperature could be adjust according the needs when the fabric in the finishing chamber. The system could control the cloth storage time and drying temperature.
4. The machine can be carried out continuously real-time collection of lint, efficient dust removal assure the quality of the processed fabric.
5. Fabric loading and unloading are controlled by centering device and stretcher ensure the fabric neatly folded.
