Applications field:

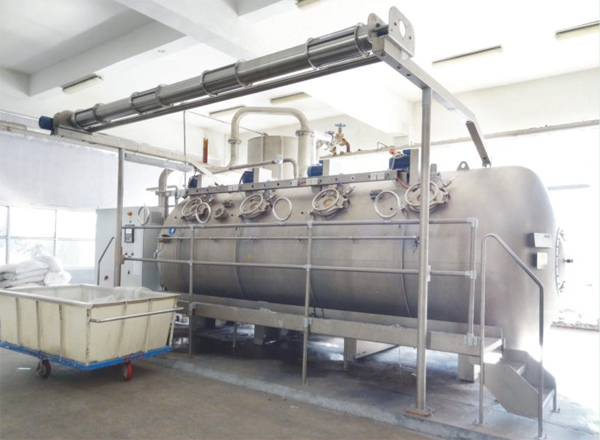

The machine is spcially designed for pure coton towel, polyester blended towel or the fabric whic have heavy grammes per square metre. Extra big nozzle of diameter 250mm, extra big and wide cloth groove have more space to mark the fabrics dyeing. High performance stainless steel centrifugal pump with advanced dye liquor circulting system to ensure the fabric dyeing effectively. The self-cleaning fiter could segregate the lint and impurities efficiency. Low bath ratio(1:4:5) will reduce water consumptin and saving energy.Advaced program controller can improve the efficiency of dyeing and dyeing reproducibility.

 Technical characteristics:
1.fabric loading wheel is placed in inside of the cylinder

small favric lifting height

low tension in fabric running
Treated fabric with lower shrinkage

low energy consumption of fabric loading wheel

Th dyed fabric without nap and messy hair. The cloth cover in high quality.

2. Adjustable variable load dyeing trough,laying th Teflon tube in the bottom.The design make the liquid and fabric separated.

Fabric running above liquid level

Lower bath ration, noly 1:4:5

increas the fabric loading capacity. each tube capaciy up to 250~300KG

dye vat has better maneuverability, wide range of dyeing fabric.

less tangle and chaos of fabric.

3.Prepare cylinder design

To avoid the waiting time when lack of water in workshop.

The water which working n cylinder pre-heating in prepare cylinder, reduces the preparation time.

interlinked with charging barrel,could dilute cemical additives

Shorten the process time

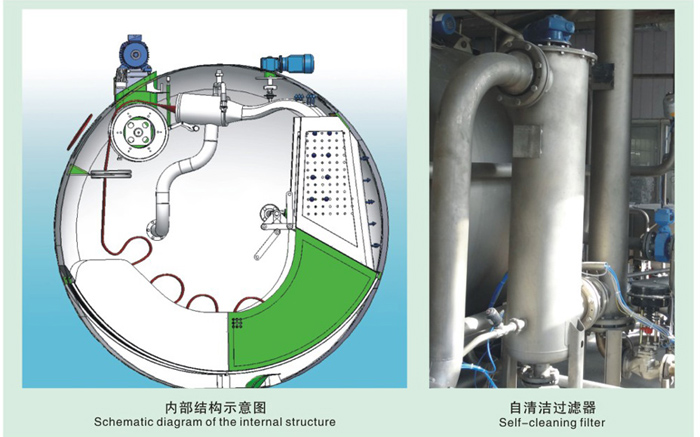

4. Self-cleaning filter

Keep the nozzle pressure stability

automatic cleaning filters in each drainage,saving clean time.

High performance of technology reproducibility

To reduce energy consumption of the main pump

5.Spcially desined nozzle and cloth folding system

wide range of fabric grammes per square metre

The tapered involute nozzle help expand the fabric.

Waveform relaxation distribuion pipe andgradually open channle make the fbric expand fully and dyeing unifom.

The nozzle and waveform distribution pipe are rotatio when the cloth folding,It make the fabric open fully, achieve the best folded cloth the avoid the squeeze fabric such as in traditional dyeing machine.
